Before you attempt to attach our PuK grips, please check our PuK Grips Compatibility Guide to ensure that you're compatible.
Step 1: Prepare Your Phone
- Place your phone in its case. You can install Grips without a case, but beware: our Grips attach semi-permanently

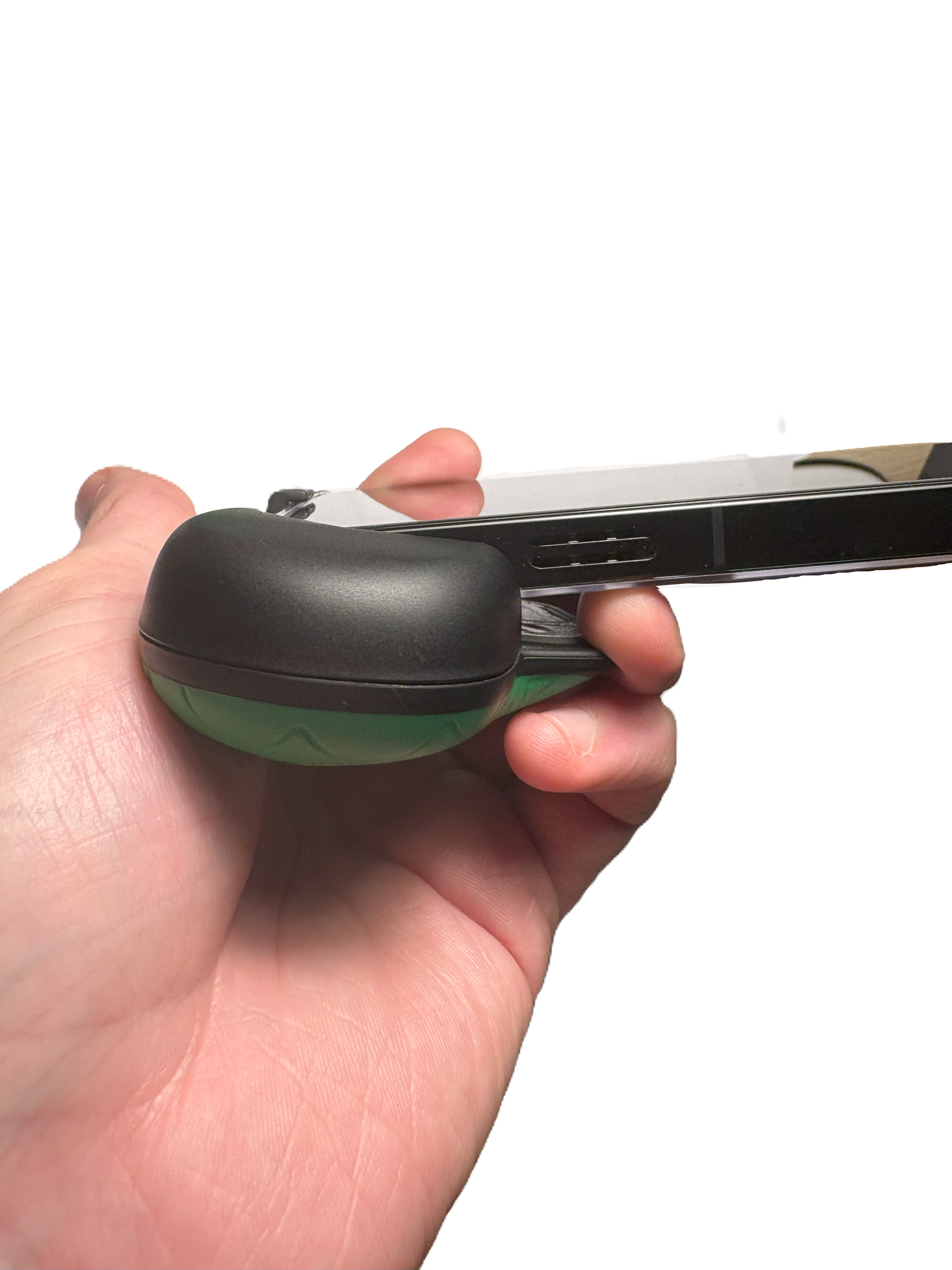

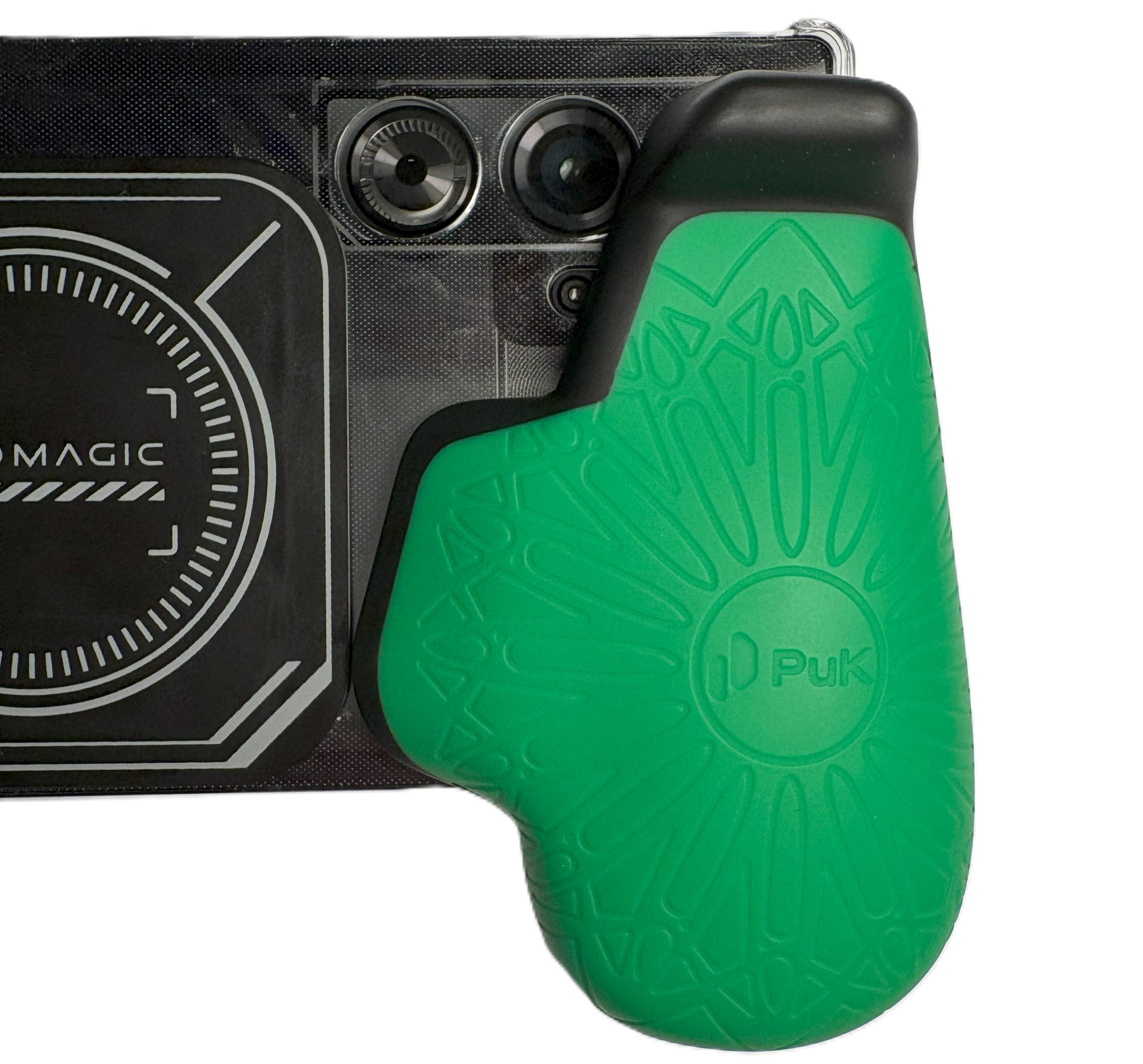

- Position the phone with the camera under the thin side of the LEFT HAND Grip
Step 2: Check for Gaps

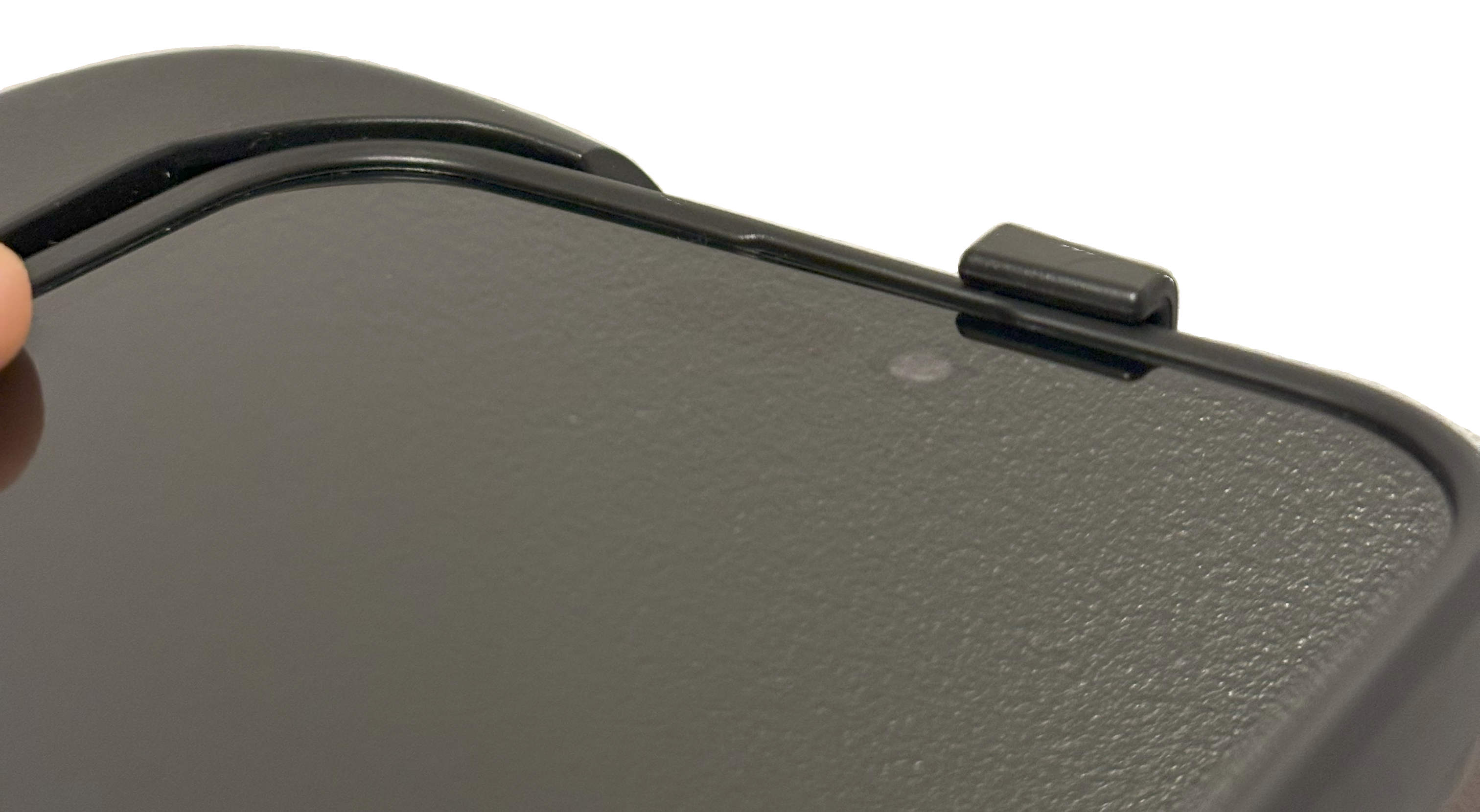

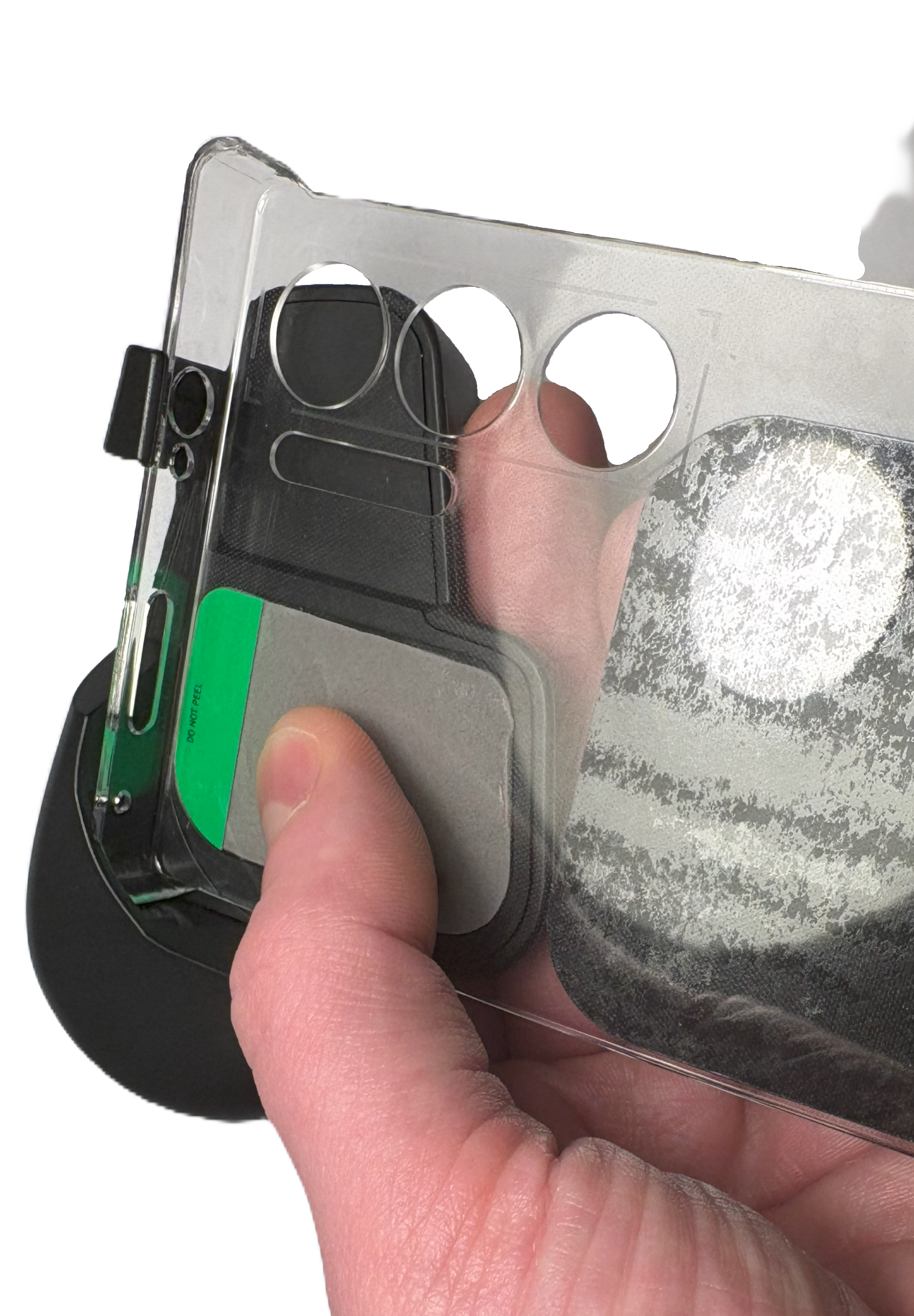

- Press your phone down onto the grip

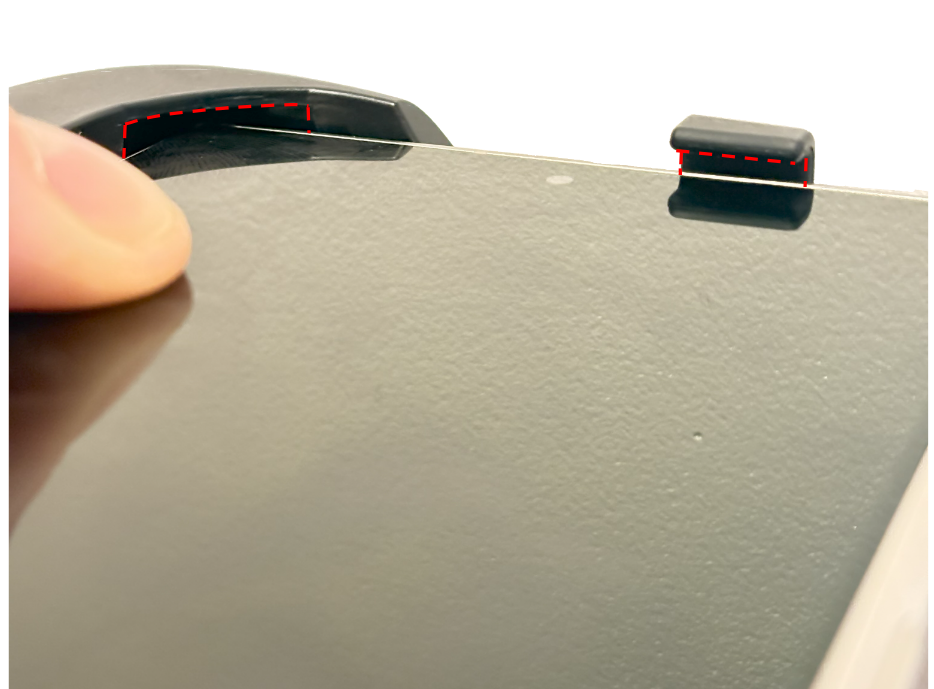

- If you do observe a large gap under the Corner Overhang and the Hook Overhang, then you should add another Sticky Pad: Proceed to Step 3
- If you don't observe a large gap then you don't need to add another Sticky Pad: Skip Steps 3 & 4: Proceed to Step 5
Step 3: Add more Sticky Pads
Only follow Step 3 if directed by Step 2. Otherwise proceed to Step 5.

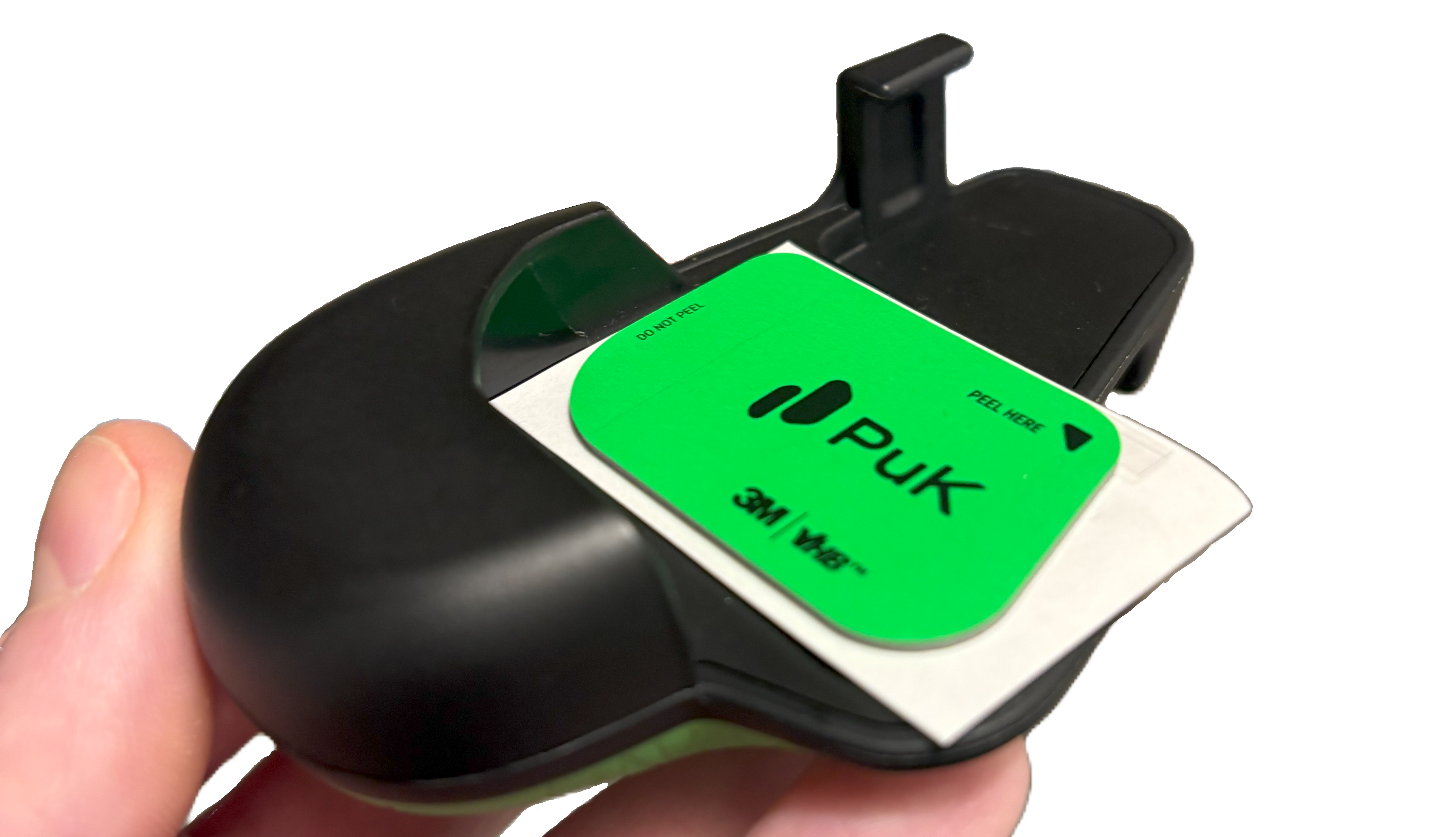

- Your grips come with a selection of sticky pads at different thicknesses. Test-fit the sticky pads (don't peel them yet). Stack them to find the best fit under the Grip’s corner-overhang and hook overhang
Step 4: Peel and Stack your Sticky Pads
Only follow Step 4 if directed by Step 2. Otherwise proceed to Step 5.

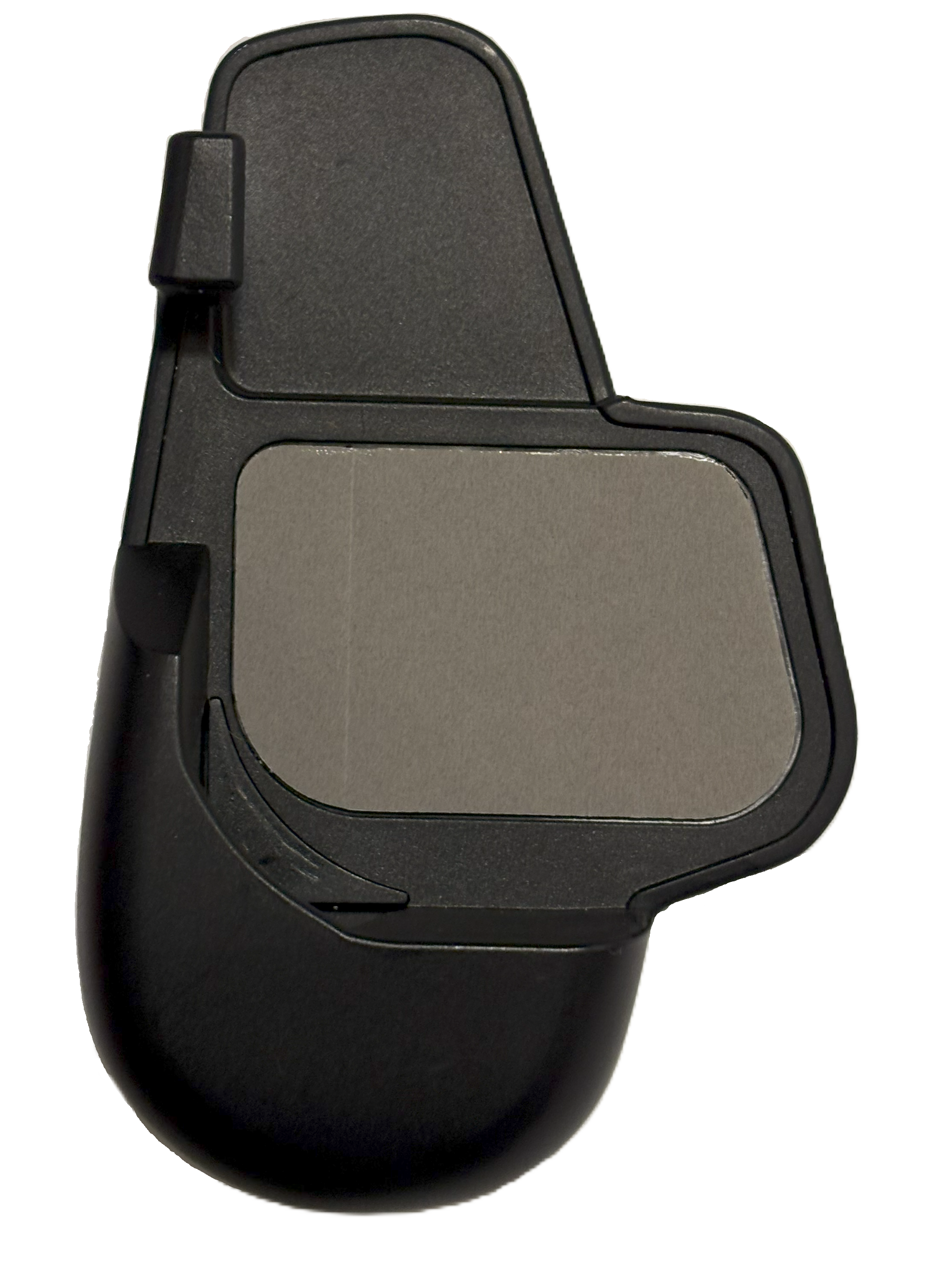

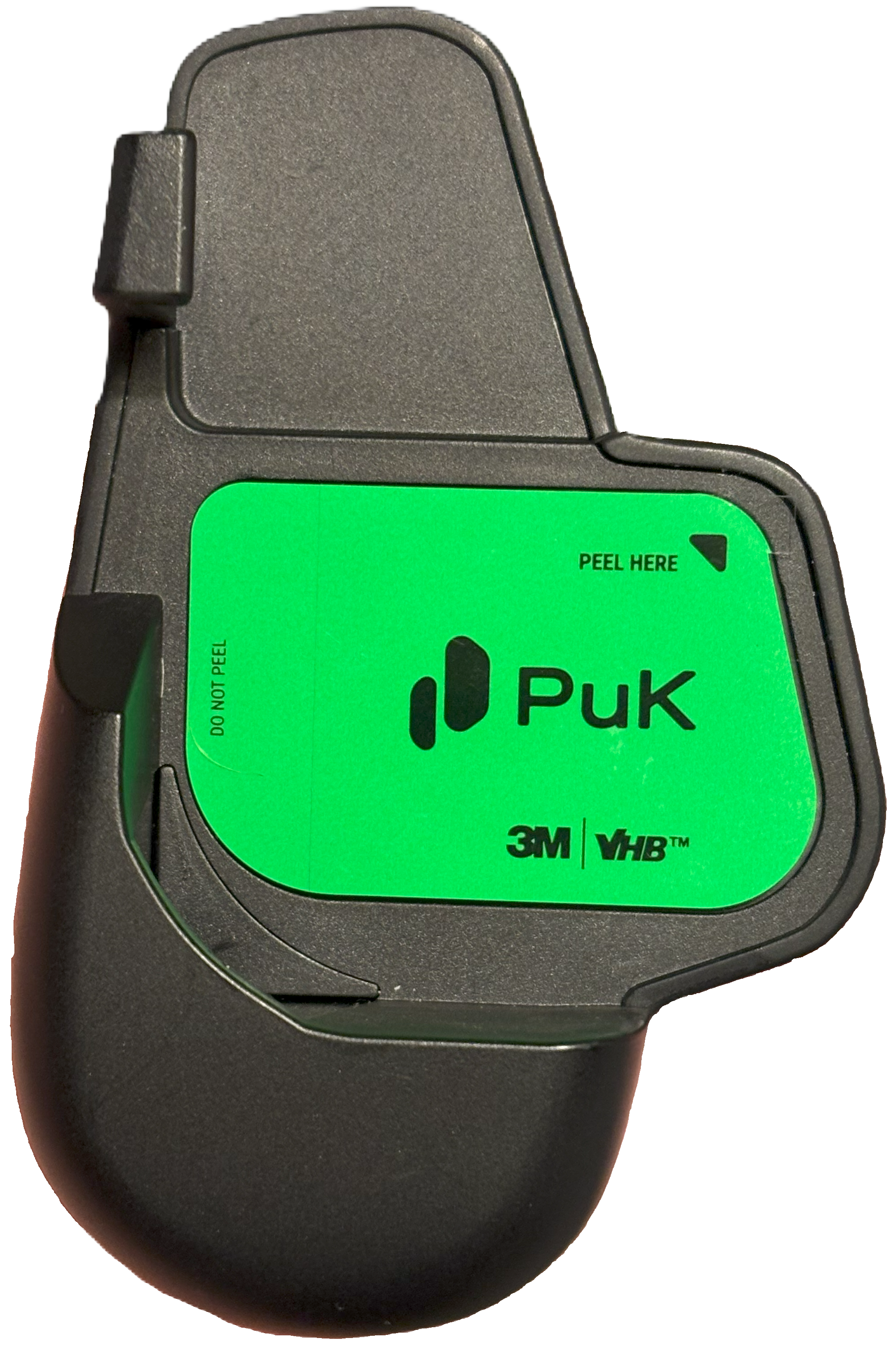

- Peel both parts of the covering film on your base sticky pad
- Peel the back film from your additional Sticky Pad and place it over the top of the base Sticky Pad. Take care to align it well (it doesn't have to be perfect!)
Step 5: Attach the Grip
- Clean the back of your Phone case with the included alchohol wipe

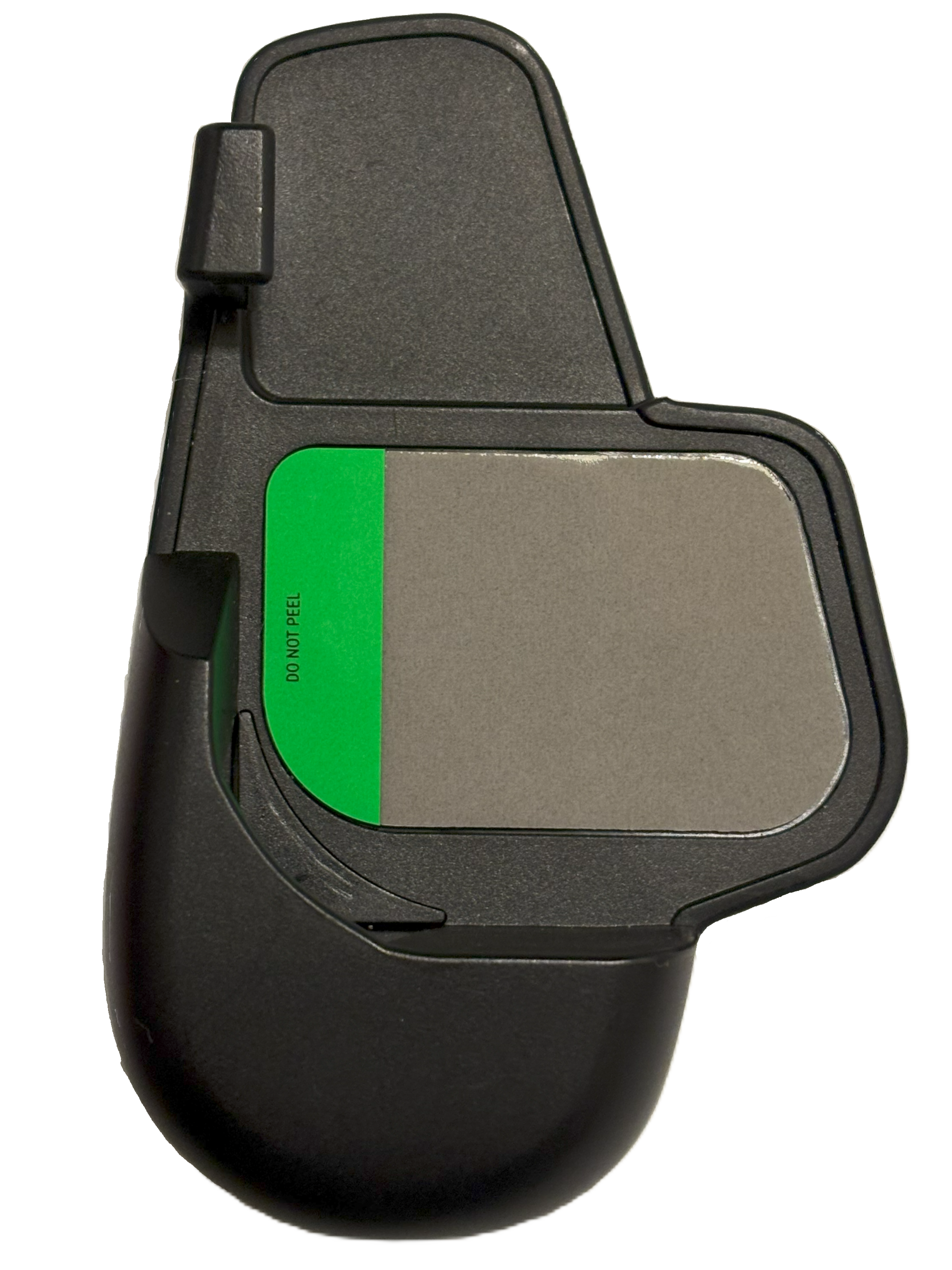

- Peel the larger piece of covering film from your top Sticky Pad

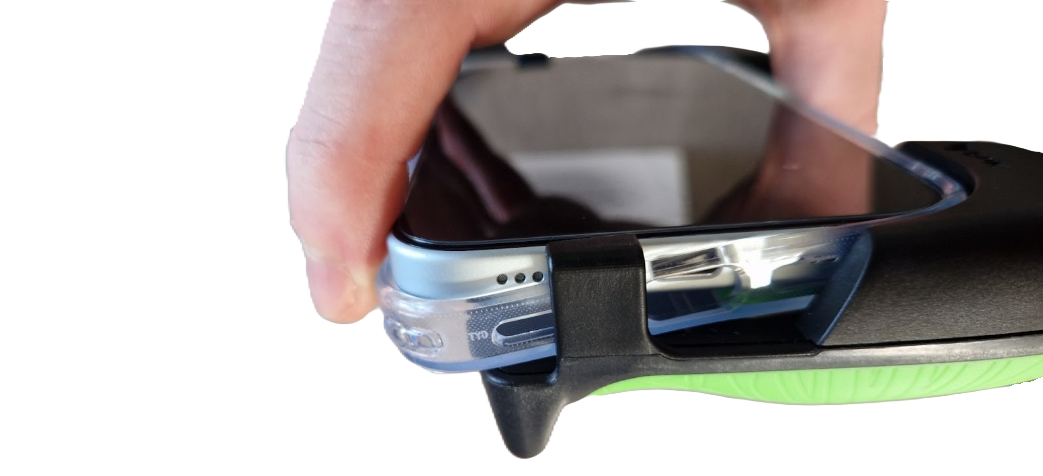

- Before you lay your phone down onto the Sticky Pad, make sure your phone is positioned close to these locations:

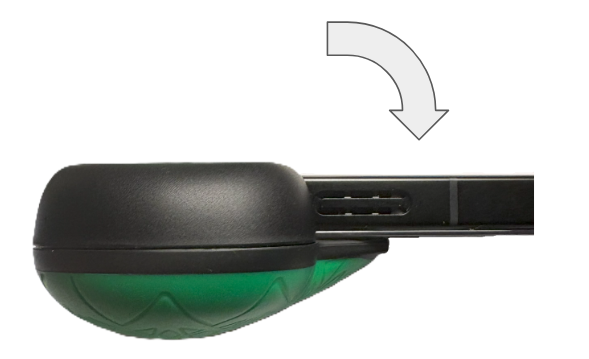

- Lay the phone flat over the adhesive and press down for 20 seconds
Step 6: Finalise Adhesion
- Carefully remove your phone from the case without using too much force
- Press down on the sticky pads to ensure strong adhesion. Avoid putting too much strain on the adhesive for 24 hours for the strongest long-term bond
Step 7: Repeat for Right Hand Grip
- Repeat the above steps for the RIGHT HAND Grip to complete Grips intallation
